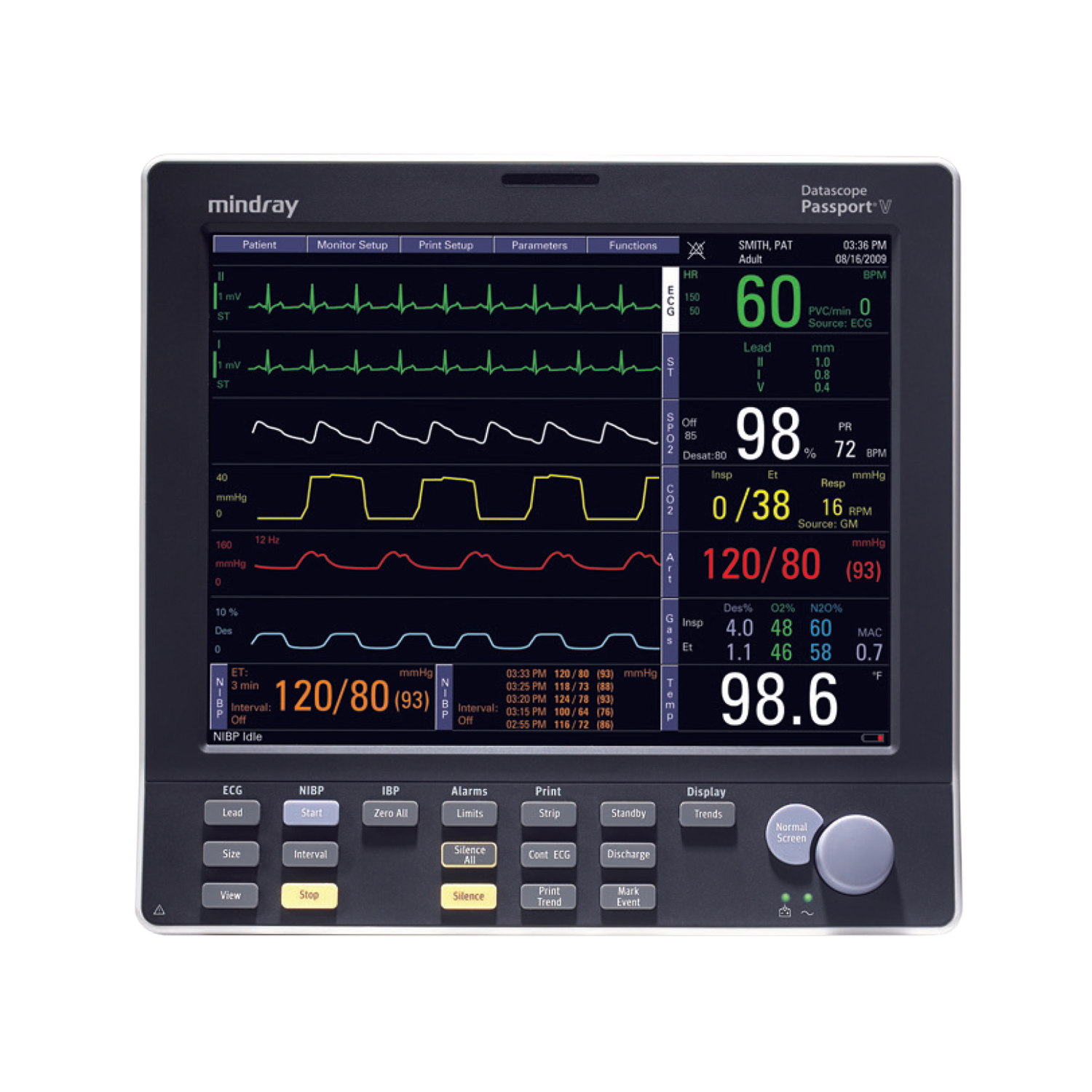

Mindray Passport V Patient Monitor
Passport V is Mindray’s latest addition to a long line of portable patient monitors designed to meet the needs of caregivers in a range of clinical areas. Passport V is built on a solid foundation of experience and knowledge. It follows a proven approach to the acquisition and presentation of patient data, thereby delivering impressive reliability and performance. Like other products in its line, Passport V utilizes a straightforward, familiar interface so that the user’s experience is a positive one. It delivers just the right combination of simplicity and sophistication, offering a comprehensive feature-set in an uncomplicated, easy-to-learn manner.
Passport V is Mindray’s latest addition to a long line of portable patient monitors designed to meet the needs of caregivers in a range of clinical areas. Passport V is built on a solid foundation of experience and knowledge. It follows a proven approach to the acquisition and presentation of patient data, thereby delivering impressive reliability and performance. Like other products in its line, Passport V utilizes a straightforward, familiar interface so that the user’s experience is a positive one. It delivers just the right combination of simplicity and sophistication, offering a comprehensive feature-set in an uncomplicated, easy-to-learn manner.
Beyond that, this clever new monitor delivers just as much flexibility as you’ve come to rely on with our other patient monitors. Passport V is available in a variety of versions, depending on your capability and technology preferences. With a broad range of options, it is well-suited for most hospital departments.
Enhanced capability, more optional features and extraordinary value make Passport V a compelling alternative for any healthcare environment requiring continuous physiological monitoring.
- The large 12.1″ display is highly visible from most vantage points. And you’re sure to appreciate the auto-configuration feature that enables the display layout to automatically reconfigure as patient cables are added and removed.
- Passport V offers ECG, NIBP, temperature, respiration and Masimo SET® motion-tolerant SpO2 as its standard configuration, along with a variety of optional parameters and features.
- 96 hours of patient data is provided in a list or graphic trend format so you can easily review your patient’s history. For simple and efficient documentation, you can also print patient data to a laser printer.
- Comprehensive calculations packages including both IV drug and hemodynamic data allow for quick and automated calculations. Titration tables and calculations can be printed to the internal recorder or a networked laser printer to satisfy long-term documentation needs.
- Remote View mode with 8-bed alarm notification enables clinicians to monitor multiple patients without leaving the bedside.
- The innovative quick-release mount makes transport a bit easier. Remove the monitor from its wall mount or rolling stand using the one-touch mechanism and you’re ready for transport. No need to disconnect patient cables.
Dimensions
| Height: | 11.2 in (28.5 cm) |
|---|---|
| Width: | 11.8 in (30 cm) |
| Depth: | 5.5 in (14 cm) |
| Weight: | 11 lbs (5 kg) |
Display
| Display Type: | Color, anti-glare TFT display |
|---|---|
| Size: | 12.1" (246 x 184.4 mm.) |
| Resolution: | SVGA 800 × 600 pixels |
| Waveforms: | 3 to 8 |
ECG (3 and 5-Lead)
| Leads: | I, II, III, aVR, aVL, aVF, and V |
|---|---|
| Cable Detection: | Automatic Detection of 3 or 5-lead Sets |
| Display Sensitivity: | 1.25, 2.5, 5, 10, 20, 40 mm/mV |
| ECG Signal Range: | +/- 8 mV (peak-to-peak value) |
| Calibration Signal: | 1 mV (peak-to-peak value) |
Frequency Response to Screen
| Surgical Mode: | From 1 to 20 Hz |
|---|---|
| Monitor Mode: | From 0.5 to 40 Hz |
| ST Mode: | From 0.05 to 40 Hz |
| Diagnostic Mode: | From 0.05 to 150 Hz |
| Defibrillation Protection: | Withstand 360 Joule discharged current as per IEC 60601-2-27, 51.101.1 |
| Baseline Recovery Time: | <5 s after defibrillation (in monitor and surgical mode) |
| Defib. Synchronous Pulse: | The time interval between the peaks of R-waves to the start of synchronous pulses is ≤35 ms |
ECG Analog Output
| Delay: | 25 ms max |
|---|---|
| Sensitivity: | 1 V/mV of input ±10% |
Heart Rate
| Range: | 15–300 bpm adult, 15–350 bpm pediatric, 15–350 bpm neonatal. |
|---|---|
| Accuracy: | ±3 bpm or 3% at 30–250 bpm whichever is greater ±5% at 251–350 bpm, the greater of. |
| Pacer Pulse Rejection: | Rejects pulses of amplitude between ±2 mV to ±700 mV and duration 0.1 ms to 2 ms with no tail. |
| Tall T Waves Rejection: | Rejects all T-Waves of amplitude less than 1.2 mV, QRS 100 ms, QT interval of 350 ms, duration 180 ms. |
